ABB  PM891K01 3BSE053241R1  控制器單元  模塊

ABB  PM891K01 3BSE053241R1  控制器單元  模塊

ABB  PM891K01 3BSE053241R1  控制器單元  模塊

ABB控制器單元 PM891 PM891K01 3BSE053241R1 PM891A K02 冗余控制 PM891A K02 PM891K02模塊CPU系統

ABB控制器單元 PM891 PM891K01 3BSE053241R1 PM891A K02 冗余控制 PM891A K02 PM891K02 模塊CPU系統PM891 PM891K01 3BSE053241R1 PM891A K02 PM891A K02 PM891K02

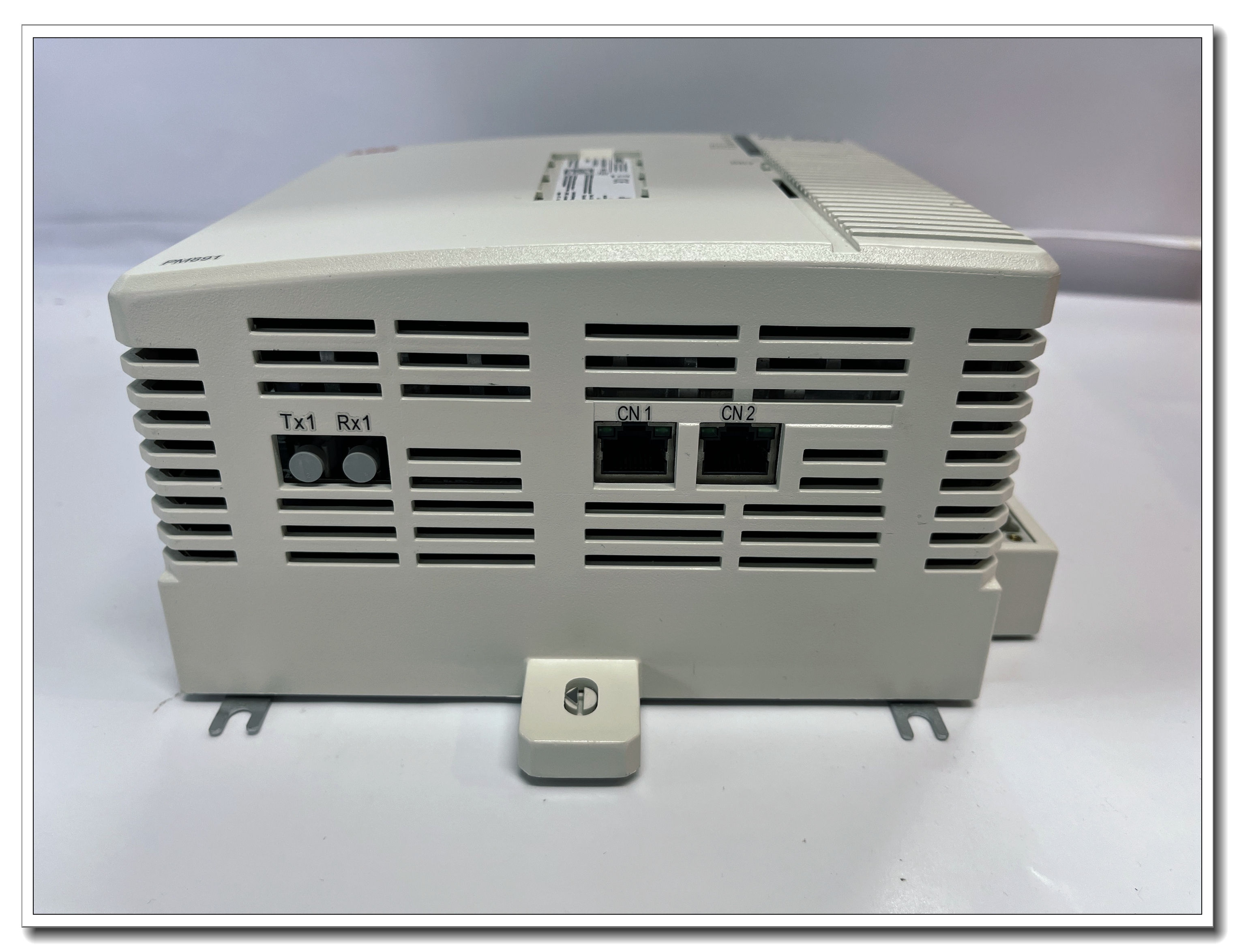

PM891處理器是一個配有電源、CPU板和單元終端的單片單元。該裝置包含微處理器和RAM內存、實時時鐘、LED指示燈、初始化按鈕和安全數字接口。PM891不包含任何內部電池。PM891有兩個用于連接控制網絡的RJ45以太網端口（CN1、CN2）和一個RJ45串行端口（COM4）。COM4端口是隔離的，用于配置工具。PM891支持CPU冗余以實現更高的可用性（CPU、CEX總線、通信接口和S800 I/O）。通信擴展總線（CEX總線）安裝在裝置上。CEX總線用于通過通信接口單元擴展車載通信端口?？梢栽贑EX總線上使用冗余通信接口。CEX總線互連單元BC810用于通過將CEX總線劃分為單獨的段來提高其可用性。該單元的光學模塊總線可用于連接七組S800輸入/輸出單元（每個單元最多包含12個單元）。每個PM891都有一個唯一的以太網地址，該地址為裝置提供硬件標識。

ABB控制器單元 PM891 PM891K01 3BSE053241R1 PM891A K02 冗余控制 PM891A K02 PM891K02模塊CPU系統

Programmable automatic controller, suitable for high reliability control application in process industryThe rich function application library contains a variety of control circuit types, such as advanced control and self-tuning functions, and integrates ABB drive and motor applications. The controller communication includes the built-in rnrp redundant communication based on Ethernet and the connection of various communication modules to third-party equipment. The advanced redundancy concept can ensure fast switching between controllers and flexible topology. A variety of CPU types are available, and the processing performance, memory size and redundancy functions can be flexibly selected. Priority based and cycle based tasks can ensure the highest stability even in the case of complex control tasks.The programming tool is compact control builder, which supports the programming language of Standard IEC 61131-3, and can configure the control program and the hardware configuration of AC 800m. Through one database, all functions such as logic, sequence control and analog quantity control can be realized for all controllers in an automation system. Flash cards enable applications to be loaded without engineering tools for OEM and remote solutions.AC 800m is a product family, based on rail installation, including a variety of CPUs, communication modules, power supply modules and a wealth of accessories. There are 7 kinds of controllers available, ranging from the controller with medium processing performance to the controller with high performance and full redundancy. Users can determine them according to application requirements and prices.
